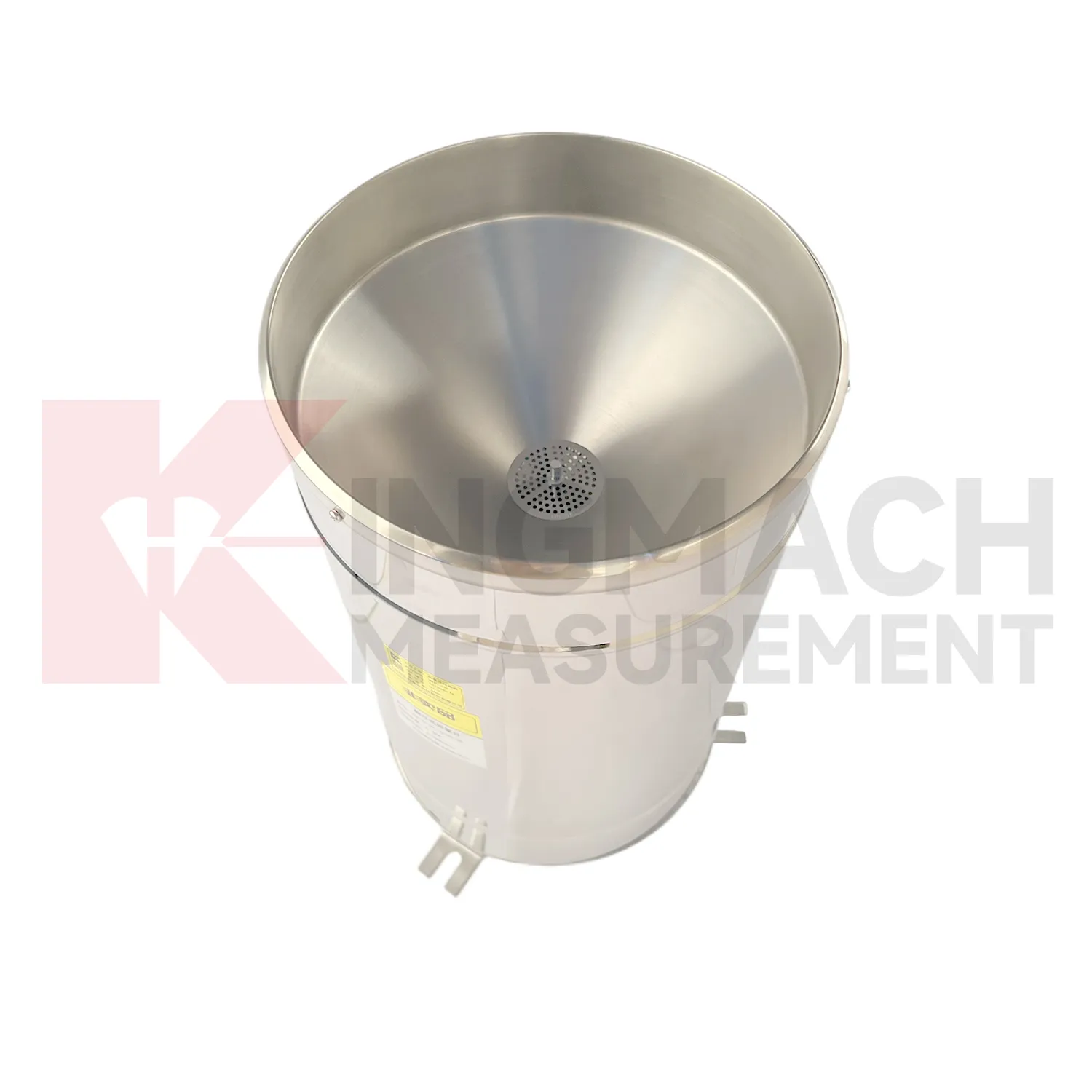

The Tipping Bucket Rain Gauge is widely suitable for rainfall monitoring in various engineering projects.
|
Place of Origin: |
Changsha，China |
|
Brand Name: |
Kingmach |
|
Model Number: |
JMYL-1YD |
|
Certification: |
GB/T 21978.2-2014 |
|
Minimum Order Quantity: |
1 Piece |
|
Price: |
Negotiable |
|
Packaging Details: |
Cartons or wooden cases. Customized packaging solutions are also available. |
|
Delivery Time: |
Shipped within 30 days after full payment receipt. |
|
Payment Terms: |
T/T in advance. |

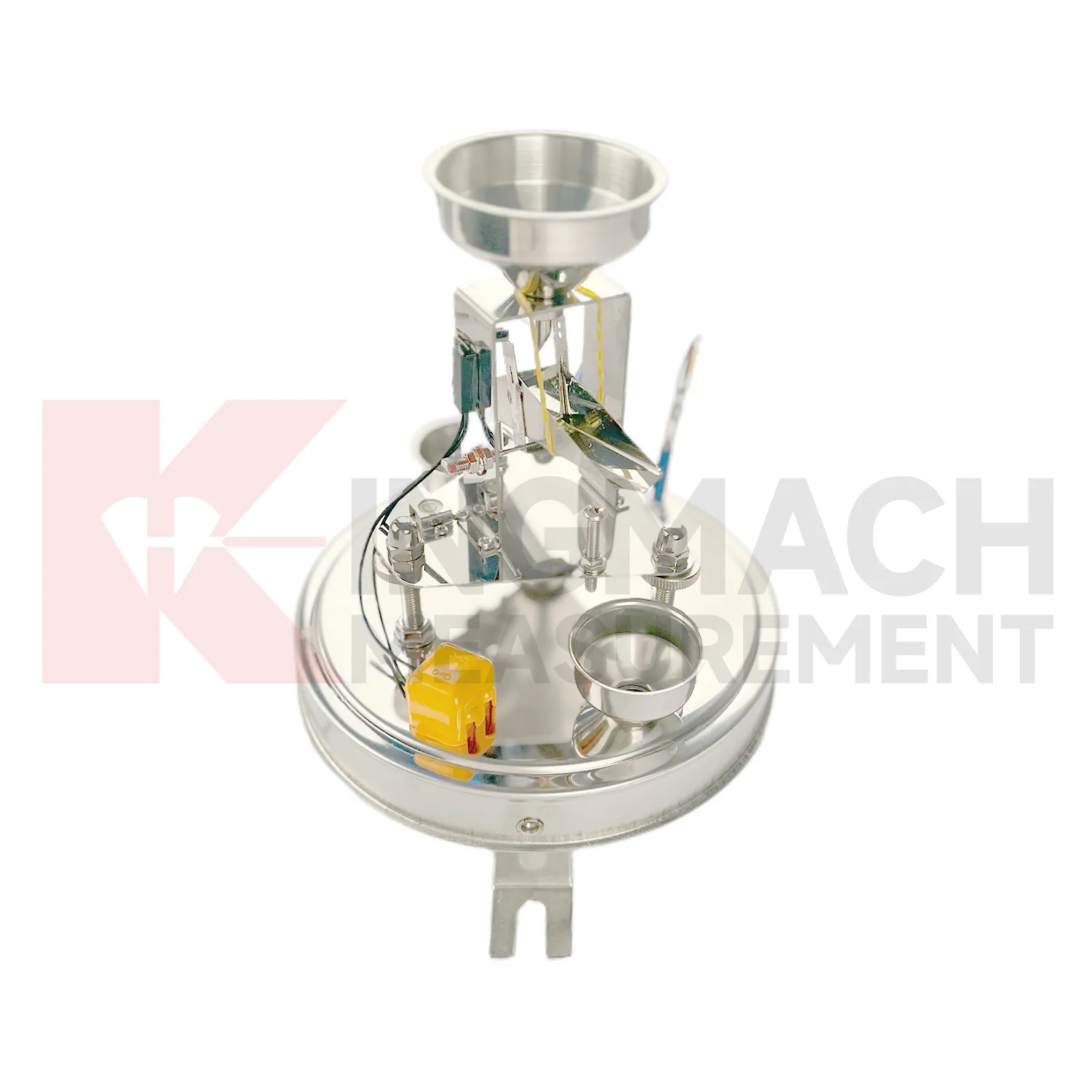

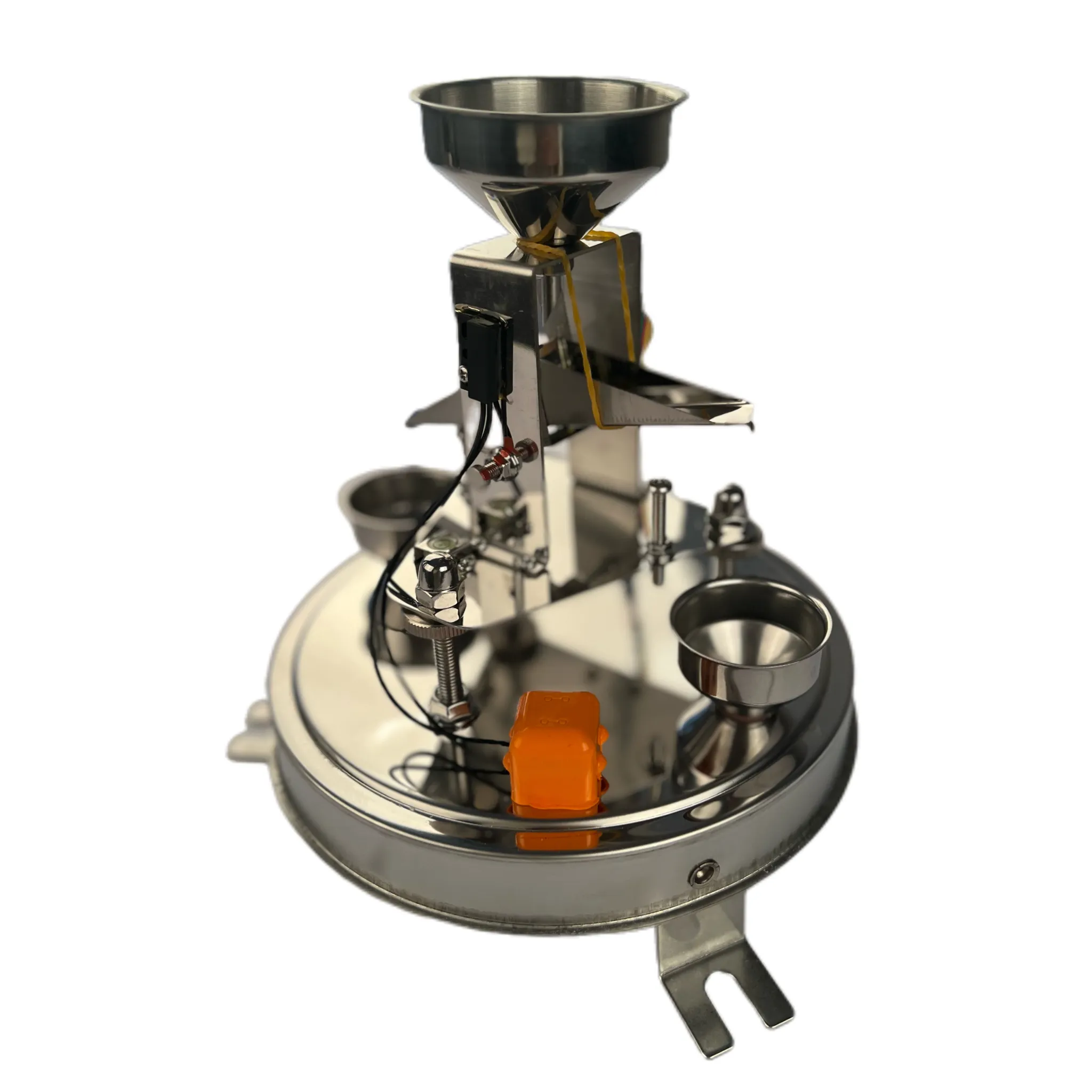

The Tipping Bucket Rain Gauge consists of the following main components: water catchment mouth, filter screen, upper cylinder, connecting screw, magnet, dry reed switch, lower cylinder, tipping bucket, limit screw, lock nut, base, spirit level, and leveling screws.
The rain gauge is made of all stainless steel material for corrosion and rust resistance, and the measuring bucket is coated with nanomaterial to prevent scale formation.
The product adopts a mechanical structural design, featuring fast response speed and good long-term stability.
Built-in intelligent chip for direct rain volume display.
Digital signal, enabling long-distance bus transmission.
The JMYL-1YD Tipping Bucket Rain Gauge is installed at engineering sites for long-term monitoring and is suitable for rainfall measurement in various engineering applications.
|
Catchment diameter |
Ф200 + 0.6mm |
|
Rainfall intensity measurement |
≤4mm/min |
|
Resolution |
3.14ml corresponds to 0.1mm, 6.28ml corresponds to 0.2mm |
|
Error |
±4%(indoor static test at rainfall intensity of 2mm/min) |
|
Output signal |
485signal |
|
Operating temperature |
0-80℃ |
|
Power consumption |
＜0.3W |
